High quality wall mount power module

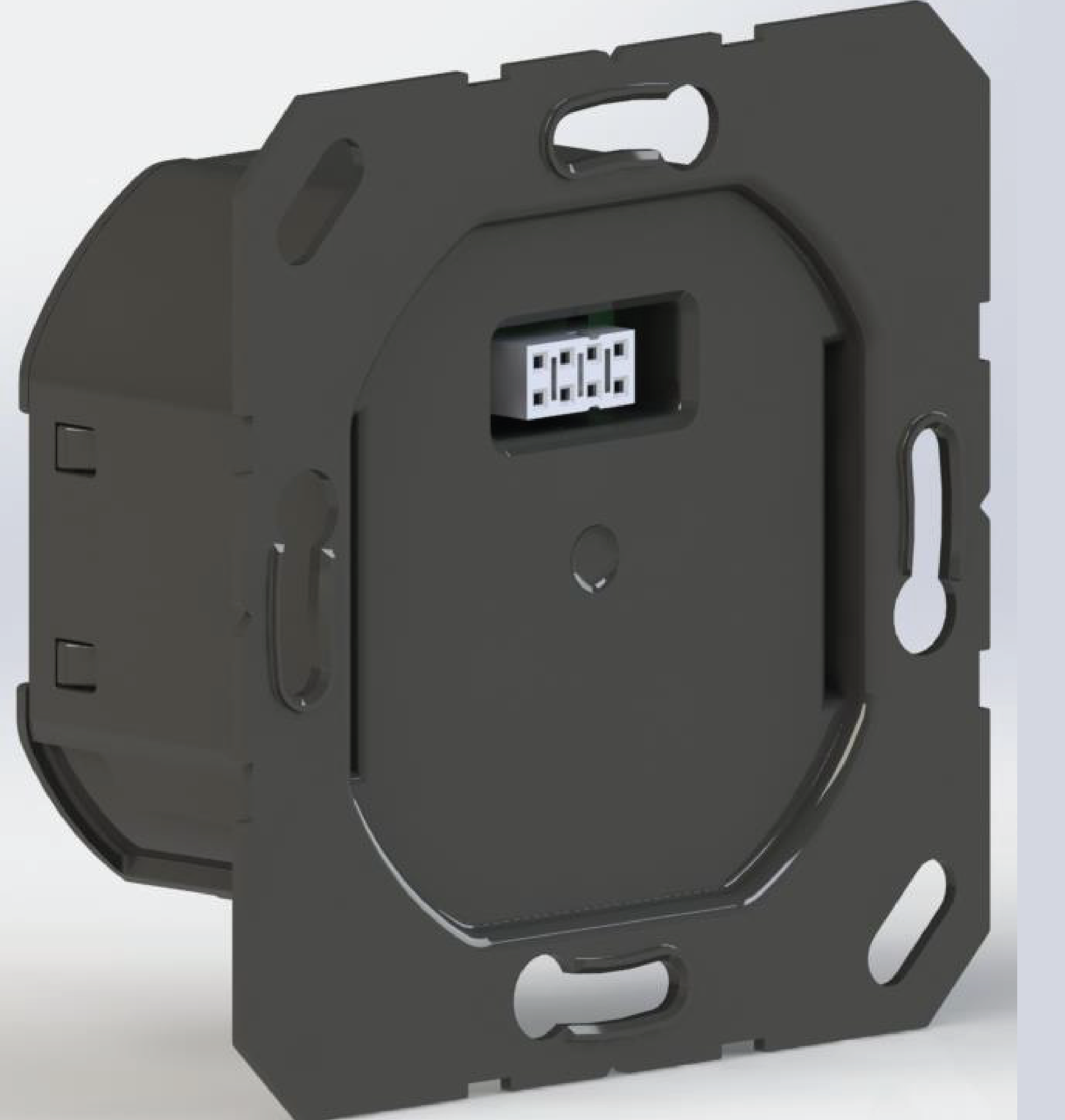

Top side of the SQ-Power with 2x4pin Socket for attaching the SQ-Panel
Basic Information
Product series:Type:
Voltage:
Max power:
Safety standard:
Installation category:
Certification:
Working Environment
Applicable place:Working temperature:
Working humidity:
Certification:
Wall mounting power module
Flyback
85-265 VAC 50/60Hz
5W 1A
EN 60669-2-5
III
CE/ROHS/WEEE
Indoor
-40 ~ 80 °C
Up to 90 % RH
CE/ROHS/WEEE

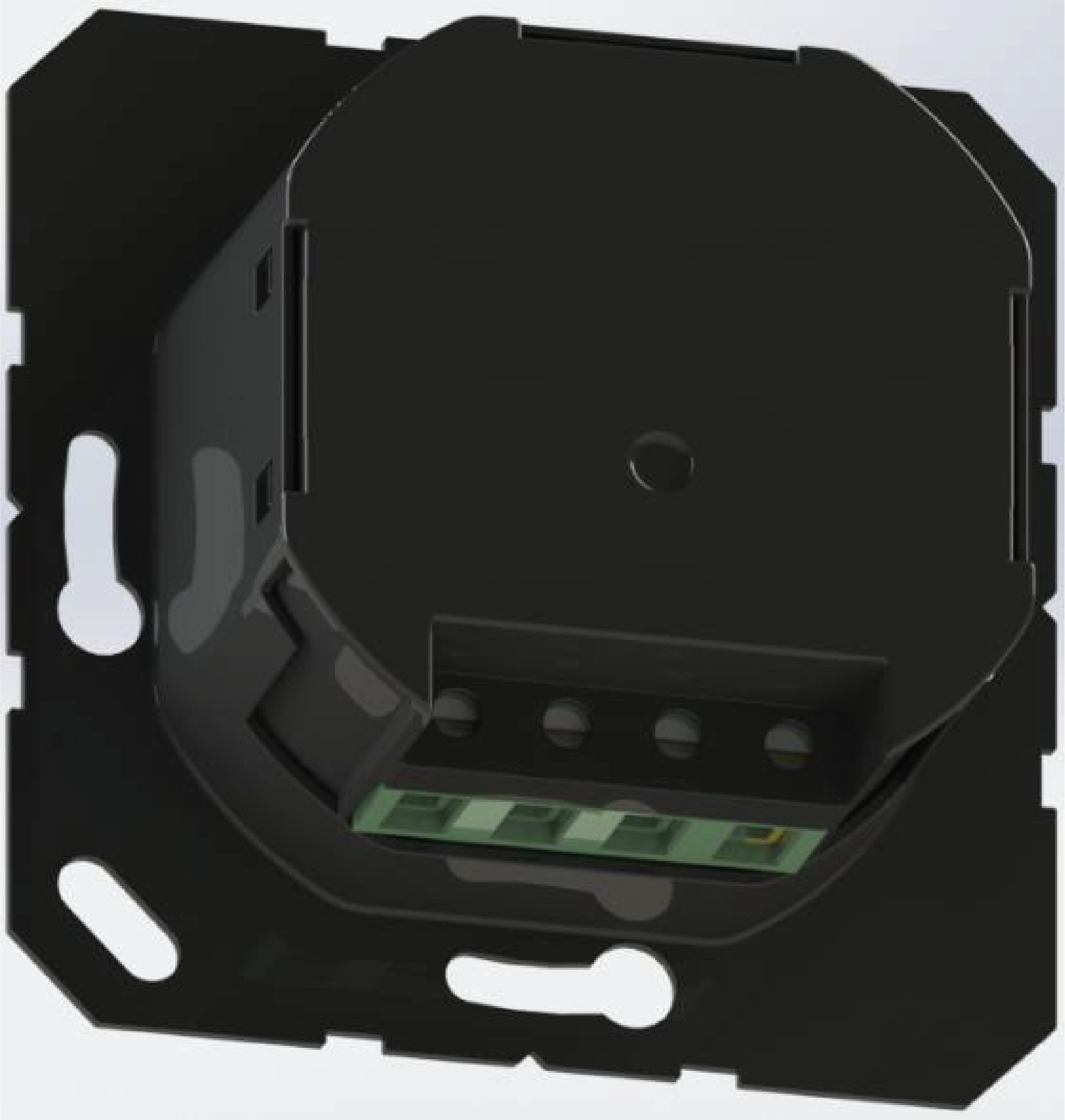

Bottom side of the SQ-Power with terminals to connect 22V cables for domestic installations.
Appearance
Weight:Casing materials:
Installation
Installation method:Installation type:

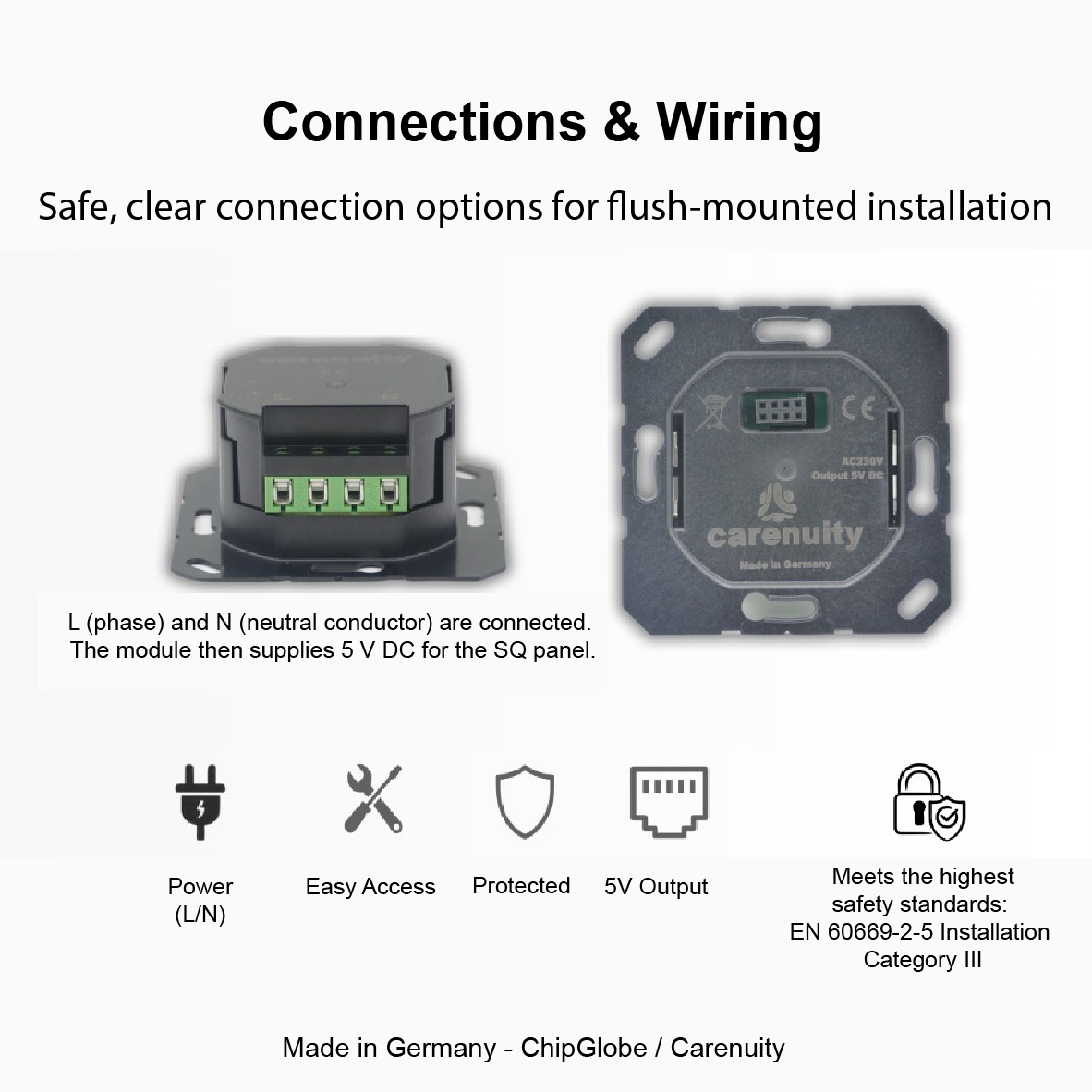

Wiring way:
Wire diameter:
49g
PCLEXAN121R

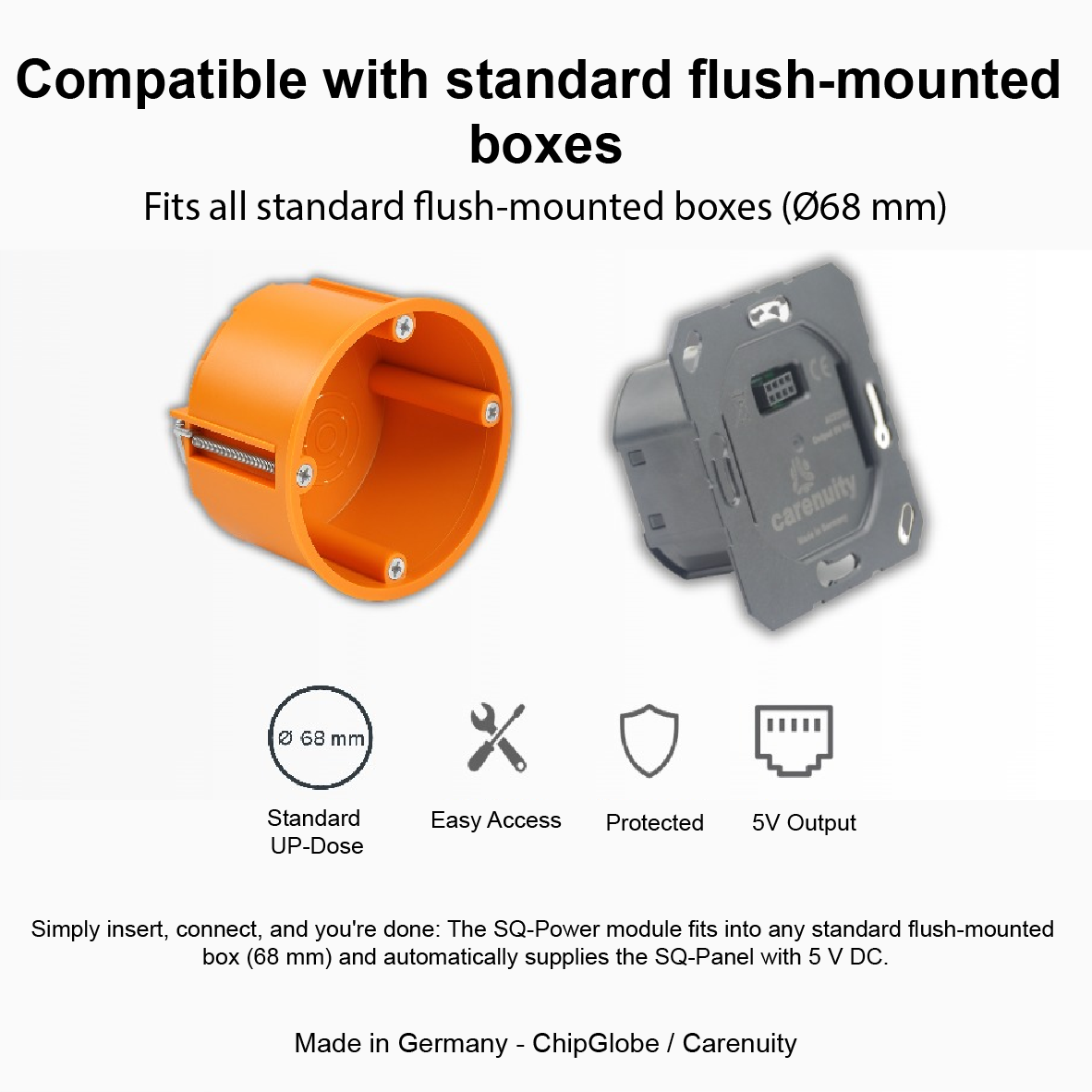

Flush mounting box
Screws installation
N and L
0.75 - 2.5 mm2
How does Sq-Power work?
You flash mount your Sq-power on the wall instead of nailing the Sq-panel table stand to the wall.
On the left side of the video is the sq-panel. The black clip on the sq-panel helps to clip the sq-power inside the wall.
It also will help you to maintain your house aesthetics for their are no cables required.
This is how neat your house will look.

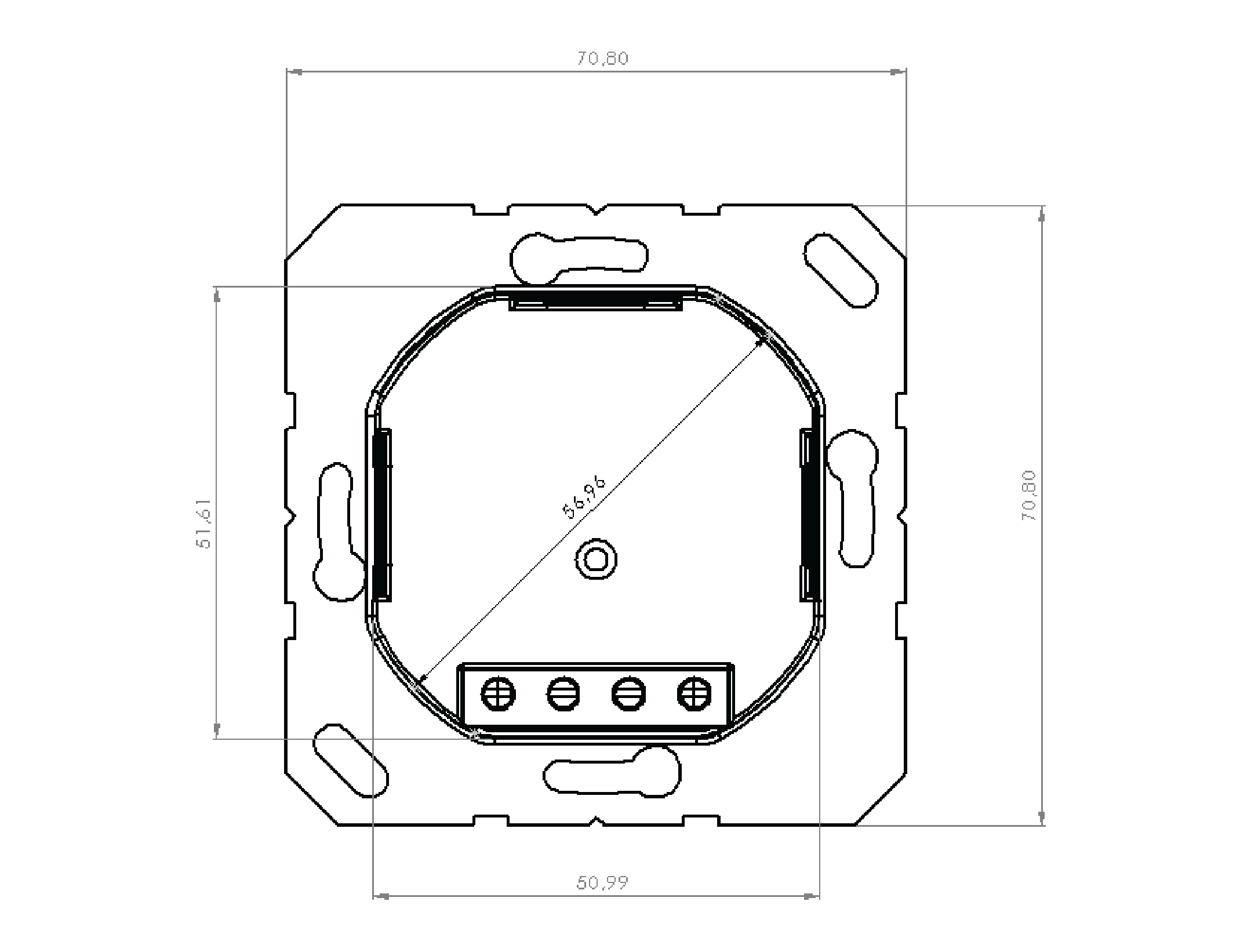

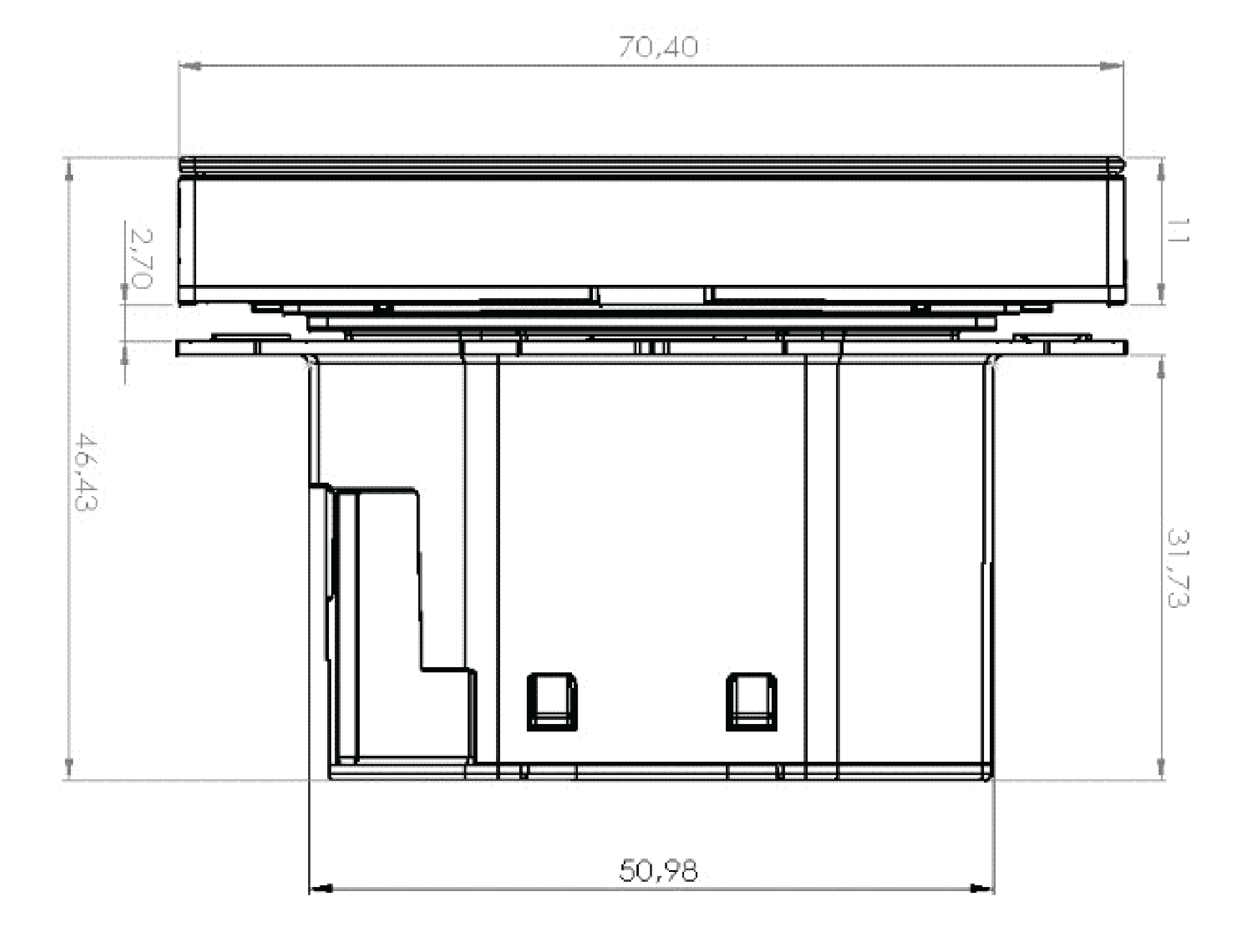

Sq-Power (Tecnical Drawings)
